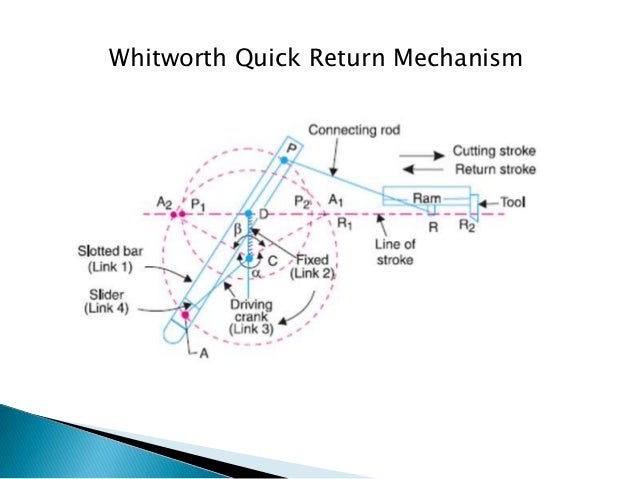

The rotary motion of P is taken to the ram R which reciprocates. The quick return motion mechanism is used in shapers and slotting machines. The angle covered during cutting stroke from P1 to P2 in counter clockwise direction is α or 360 -2θ. During the return stroke, the angle covered is 2θ or β. Links - 1.Slider 2. Crank 3.Frame 4.Slotted Lever Pairs- Frame & Slotted lever – turning Frame & Crank – turning Crank & Slider – turning Slider & Slotted lever - Sliding Construction – This mechanism is inversion of Single slider crank chain, which is obtained by fixing connecting rod of basic chain.It has three turning pair & one Sliding pair.
What made a shaping machine a reality!!In the last two posts we have discussed about the Quick-Return mechanism a and the Slider-Crank mechanism. Now if we combine both these mechanisms we get a hybrid of the two to make the shaping machine work. The diagrams of the Quick-Return and the Crank-Slider mechanisms are being reposted for your quick reference:
When the above two mechanisms are combined in such a way that an
- An 'inversion of the quick-return-mechanism' is used by means of a Rocker arrangement, having a slider inserted in its slot, for manipulating the rotation of the crank.
- The Crank-Slider mechanism is the same i.e. without inversion
The combination of the two makes the system workable and is used in most of the Shaping Machines.
Quick-return mechanism for a Shaping machine. The combined mechanism looks like the skeleton-diagram posted hereunder:
